磁気光

Magnetic Light

Magnetic Retrofit--2

Magnetic Retrofit--3

Magnetic Retrofit--4

Magnetic Retrofit--5

説明：

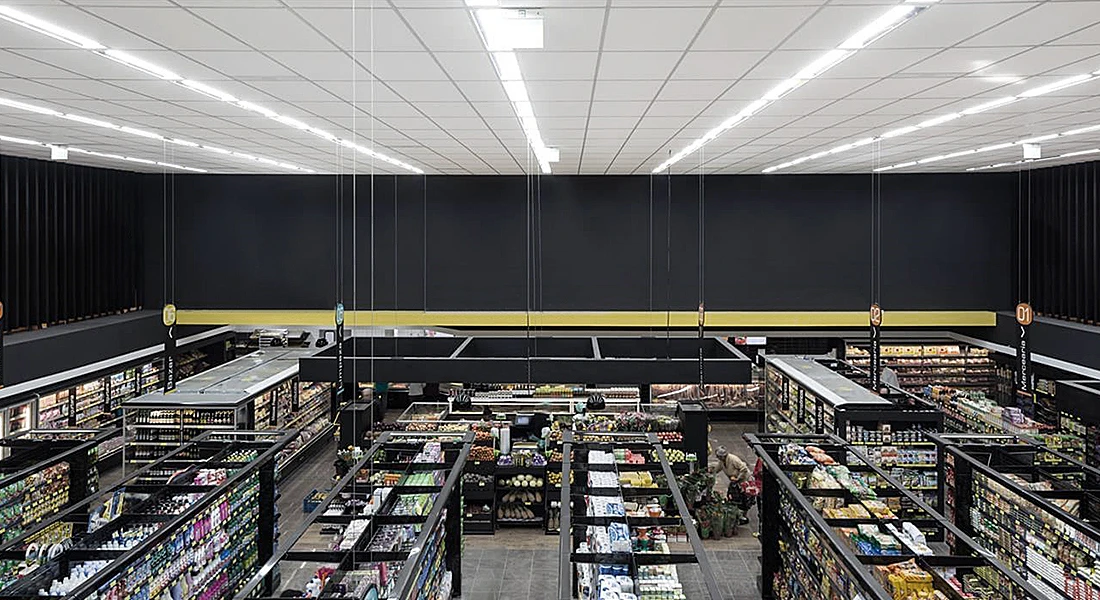

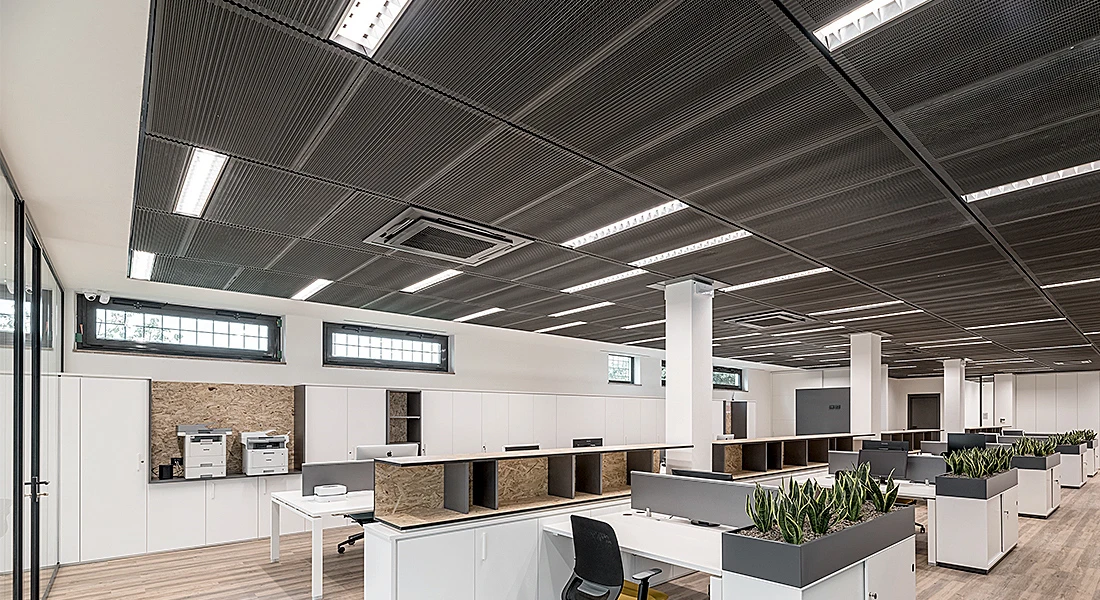

Magnetic LED Retrofit is an LED module with up to 130lm/w (Ra>90, R9>50、SDCM<3). Magnet tool-free installation, easy to maintain, saves labor costs. It is widely used to replace the traditional T5/T8 fluorescent tube light inside grille lights in offices, schools, hypermarkets, and retail stores.

特徴：

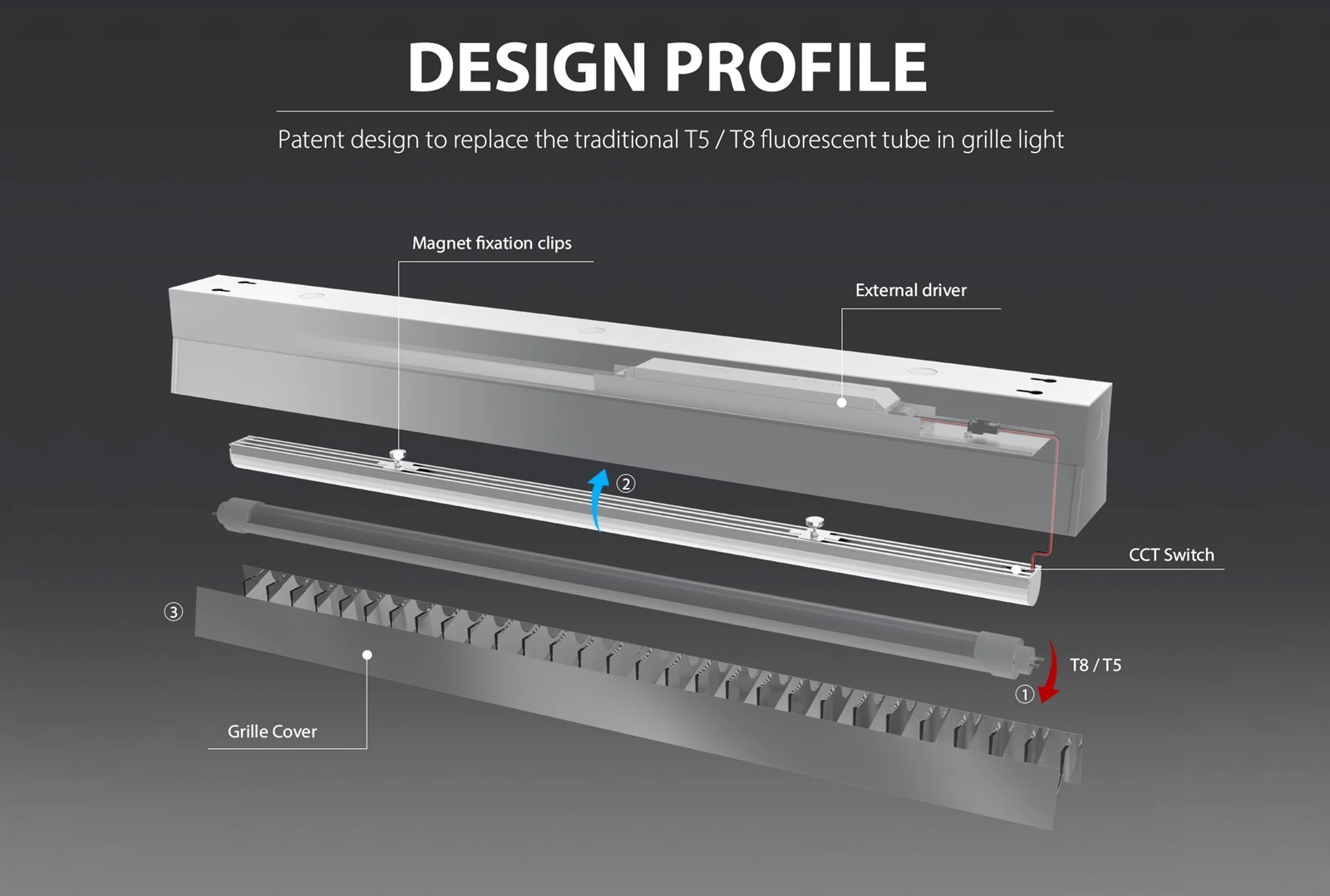

>トロファーの従来の T5/T8 蛍光管を置き換える特許設計

>パワーとカラー (3CCT) フィールド-調整可能

> Up to 130lm/w@4000lm (Ra>90,R9>50、SDCM<3)

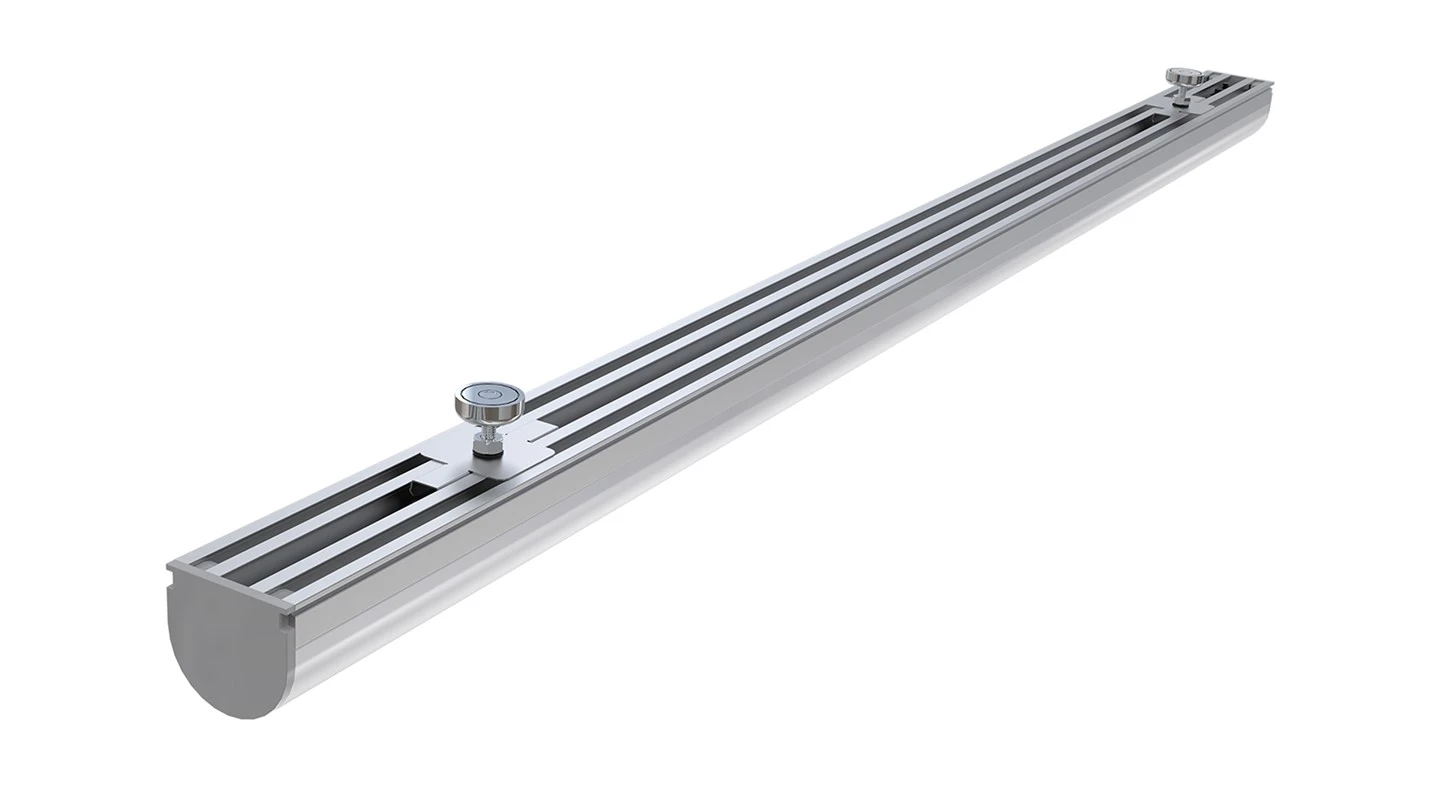

>マグネットツール-はインストールが無料で、メンテナンスが簡単で、人件費を節約できます

>蛍光灯と比較して80％以上の省エネ

Send Inquiry

Download

Description

Technical Parameters

導入：

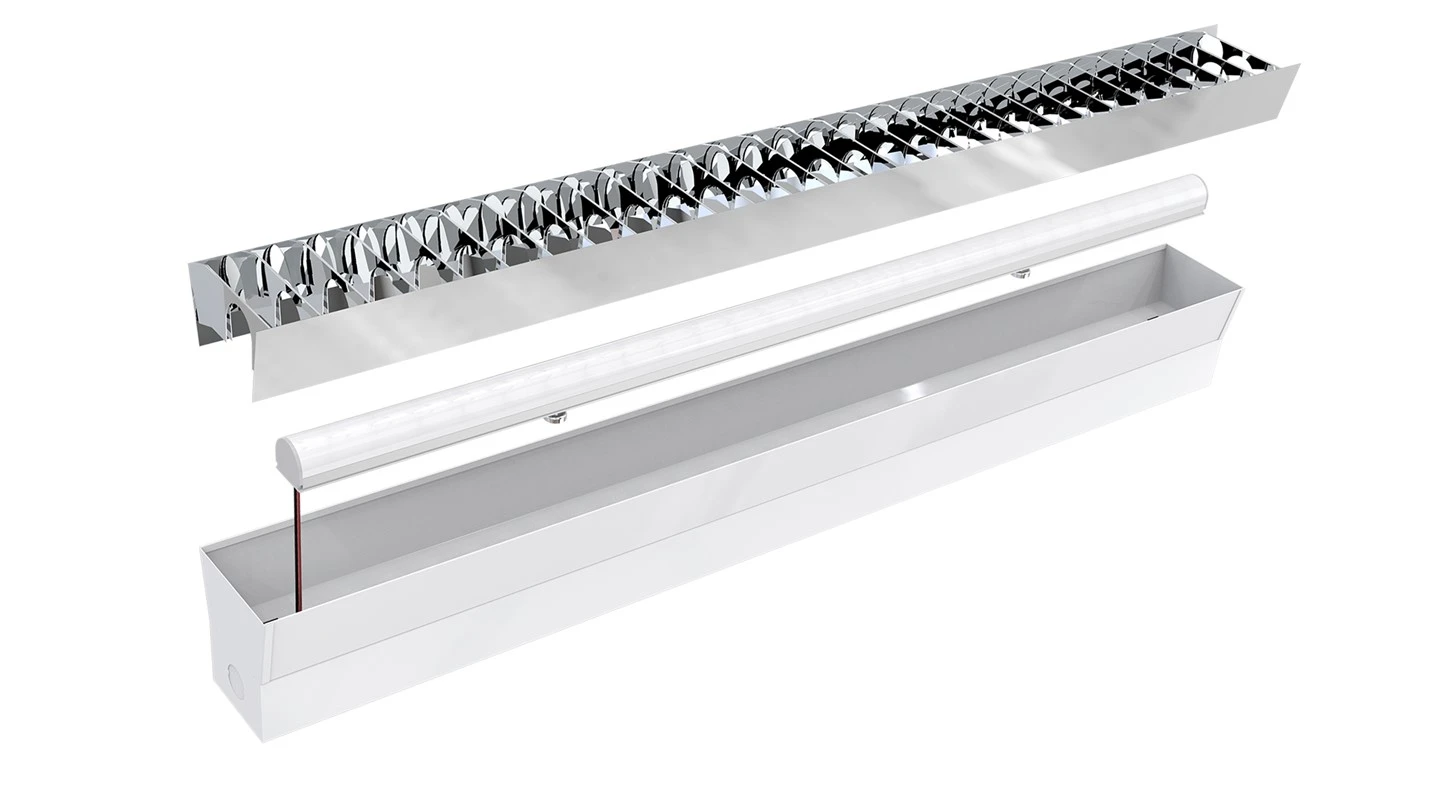

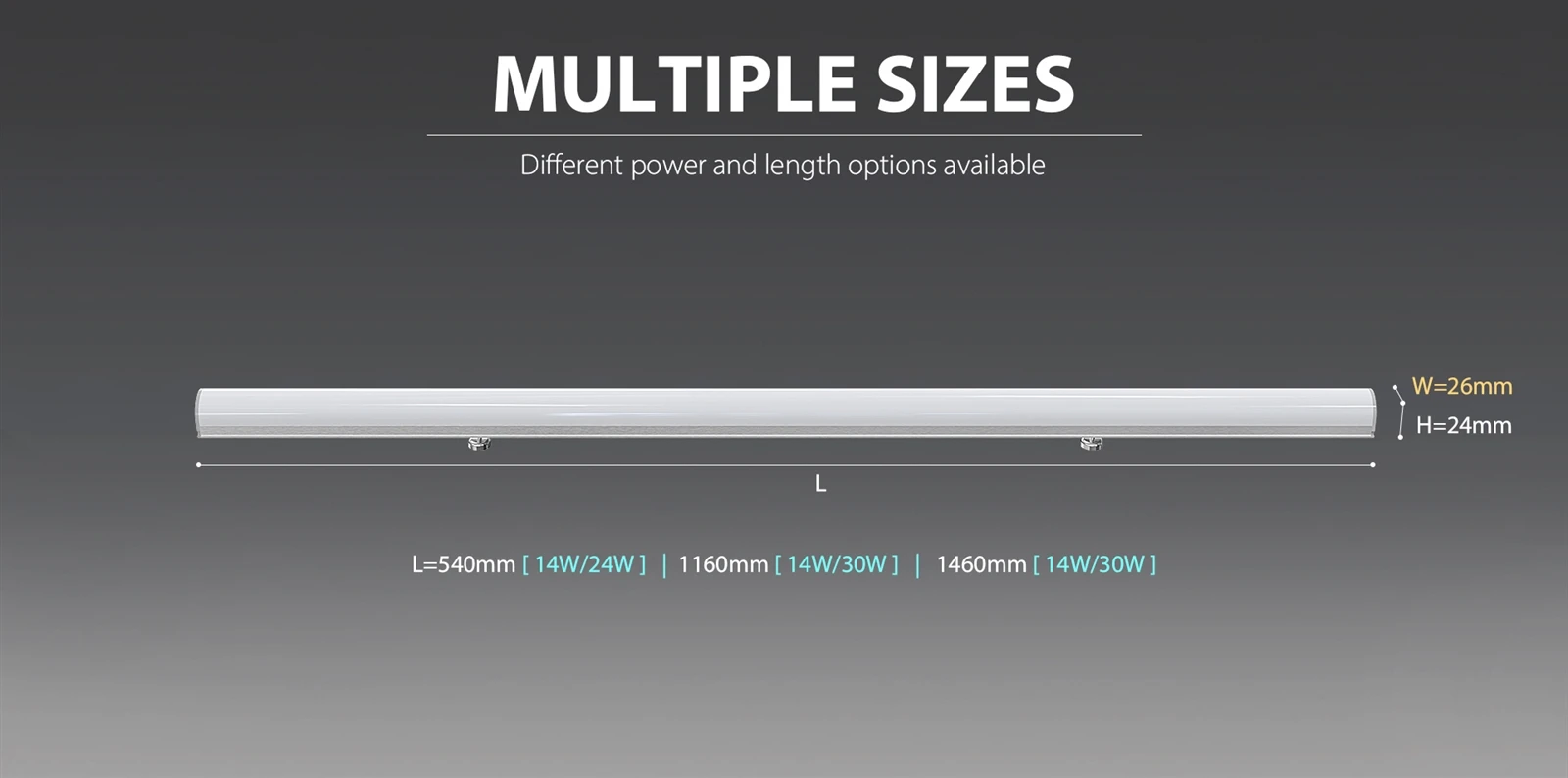

Toppo Magnetic LED Retrofit is a time-saving alternative to directly replace fluorescent lamps with LEDs. High efficacy up to 135 lm/w (Ra>90, R9>50、SDCM<3), power switch from 14-30W, 3CCT switch from 3000K/4000K/5000K, various sizes of L540mm, L1160mm, L1460mm. With magnetic, tool-free installation, in just 1 minute, your existing fluorescent tube fixtures (recessed, strip, wrap, etc.) can be converted to energy-efficient, long-lasting LED lights while preserving the look of your space.

注文コード	定格電力	LM/W	ルーメン	SDCM/Ra	IPクラス	製品寸法	GW/CTN	数量/数量
TU100-02N-PT1-24F10-01	14W/24W	Typ.120	typ.1680/2880	SDCM<3/Ra80,90	IP20	L540×W26×H24	9.91kg	25個
TU100-04N-AT1-30F10-01	14W/30W	Typ.130	typ.1820/3900	SDCM<3/Ra80,90	IP20	L1160×W26×H24	14.93kg	25個
TU100-05N-AT1-30F10-01	14W/30W	Typ.130	typ.1820/3900	SDCM<3/Ra80,90	IP20	L1460×W26×H24	17.4kg	25個
